Reed R8100SD Data Logging Light Meter

The Reed R8100SD Data Logging Light Meter has a wide measurement range up to 100,000 Lux (10,000 Foot Candles) and features data hold, min/max functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Measures ambient light levels in Foot Candles or Lux
Photo diode and colour correction filters meet C.I.E. spectrum specifications
Contact temperature measurement with a type J/K thermocouple option
Temperature is measured in °C or °F

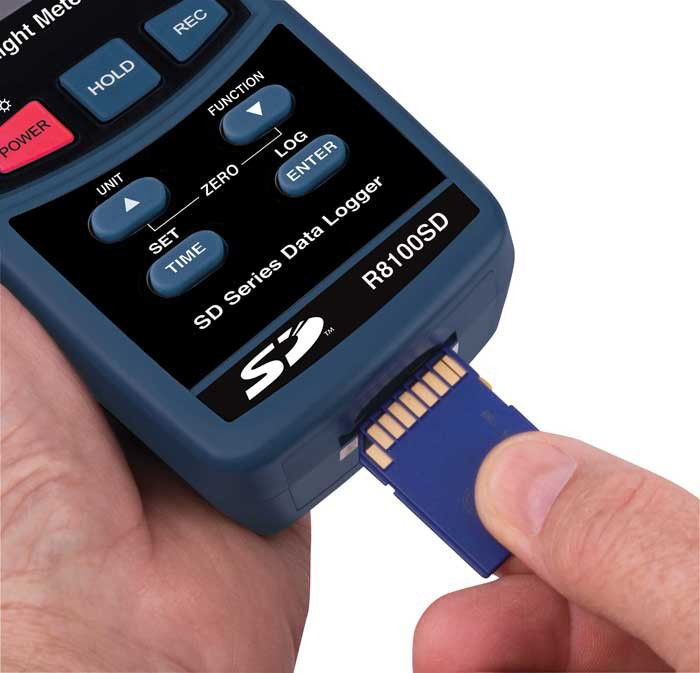

Real-time data logger with integrated SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Data hold and min/max functions
Tripod mount for long-term monitoring
Low battery indicator and auto shut off
Includes detachable sensor w/cover, soft carrying case and 6 x AA batteries

Part number: R8100SD

$269.00

Qty:

Attribute name	Attribute value
Specifications
Range :	Lux: 2,000, 20,000, 100,000; Fc: 200, 2,000, 10,000; Type K Temperature: -100.0 to 1300°C (-148.0 to 2372.0°F ); Type J Temperature: -100.0 to 1200°C (-148.0 to 2192.0°F)
Resolution :	Lux: 1, 10, 100; Fc: 0.1, 1, 10; Temperature: 0.1°C (0.1°F)
Accuracy :	Lux: ±(4% + 2 Lux); Fc: <2,000: ±(4% reading + 2 Fc); 2,000-10,000: ±(4% reading + 20 Fc) Temperature: >-58°F (-50°C) ±(0.4% + 1°F (0.5°C)), <-58°F (-50°C) ±(0.4% + 1.8°F (1°C))
Dimensions :	7" x 2.7" x 1.9" (117 x 68 x 45 mm)
Weight :	17.3 oz (489 g)
