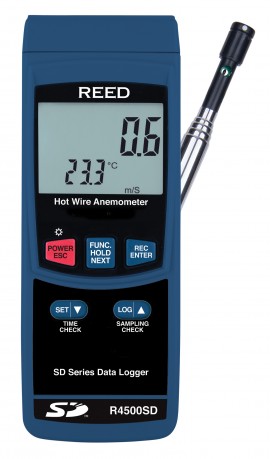

REED R4500SD Data Logging Hot Wire Thermo-Anemometer - R4500SD

The Reed R4500SD measures air velocity, air temperature and has a built-in contact thermometer. Featuring automatic temperature compensation, Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

• Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature
• Contact temperature measurement with type J/K thermocouple option
• Thermistor sensor for fast air temperature readings
• Hot wire probe for precise low air velocity measurements
• Real-time data logger with integrated SD memory card
• User selectable sampling rate from 1 to 3600 seconds
• Easy-to-read backlit LCD display
• Data hold and Min/Max functions
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off

Range: 40 to 4921 fpm, 0.2 to 25 m/s, 0.7 to 90 km/h, 0.5 to 55.9 mph, 0.4 to 48.6 knots

Air Temperature: 0 to 50°C (32 to 122°F)

Accuracy

Air Velocity: ±(5% rdg + 20 fpm, 0.2 m/s, 0.3 km/h, 0.2 mph, 0.2 knot)
Air Temperature: ±0.8°C (1.5°F)
Contact Temperature: ≥-50°C (-58°F) ±(0.4% + 0.5°C (1°F)), ≤-50°C (-58°F) ±(0.4% + 1°C (1.8°F))

Resolution: 1 fpm, 0.1 m/s / km/h / mph / knot, Temperature: 0.1°C/°F

Dimensions (L x W x H): 8 x 3 x 1.5" (203 x 76 x 38mm)

Weight: 1.13 lb (515 g)
