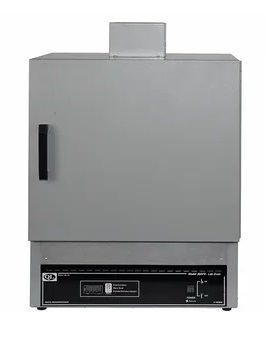

Quincy Lab Digital Forced Air Ovens - 30AFE

$2,033.33

Quincy Lab Digital Forced Air Ovens feature a digital PID microprocessor that provides not only ease of use but maintains an accuracy of ±0.5°C allowing for the most demanding applications, and a forced air circulation allowing for a more uniform distribution of heat throughout the chamber, which also facilitates evaporating. They are designed to meet the laboratory needs of industry, research organizations and schools. Well-crafted and versatile, they are used for part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing, as well as many more applications.

  • Circulating fan provides air circulation for improved uniformity
  • Dual overtemperature safety features will shut-off the unit until it is manually reset
  • Corrosion resistant aluminized interior
  • Resistive-tubular incoloy heating elements
  • 1" inch of high density mineral wool insulation
  • Insulated Steel Doors with high impact thermoplastic handles
  • 2 adjustable and 1 fixed nickeled plated shelves
  • Baked in scratch-resistant powder coated finish

Advanced Design

Cabinets are as attractive as they are durable. Exteriors are painted light gray and have a hard, scratch-resistant hammer finish. Doors open with high-impact thermoplastic handles. Cabinets have heavy steel double-wall construction. Workspace is insulated from the outer cabinet with one inch of high-density mineral wool, and interiors are made of corrosion-resistant aluminized steel.

Controls

The digital control combines the features of the analog model but offers the ease of temperature setting and the stability of a full PID microprocessor that accurately maintains settings within ±0.5°C (1°F), even in varying ambient or power supply conditions. This feature helps to confirm stability or indicate any control malfunction or power loss throughout a process period. The digital controller features large LED's that continuously display set temperature and process temperature, as well as a setting lock mode that provides protection against accidental or inadvertent adjustment.

Heating Elements

Energy-efficient, low-watt density, incoloy sheathed elements are engineered into a compact design for quick run-up and recovery times. Temperature uniformity is greatly improved by a perforated heat shield which absorbs radiant heat and distributes it more evenly throughout the product chamber.

Part Number: 30AFE
Attribute nameAttribute value

Specifications

Capacity :1.83 Cubic Feet
Internal Dimensions LxWxH :18" x 14.2" x 12" (45.7 x 36 x 30.5 cm)
External Dimensions LxWxH :20" x 29" x 14.3" (50.8 x 73.7 x 36.2 cm)
Maximum Temperature :232°C (450°C)
Power :115V/1500W/12.5A
