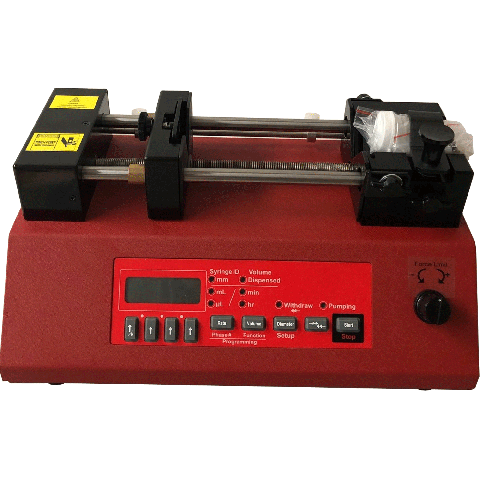

New Era NE-8000 Series High Pressure Programmable Syringe Pumps - NE-8000

Easy-to-use keypad interface
One-click program upload from "Pumping Program Generator" spreadsheet
Space Saving Chassis: Foot print size of only 11¼" x 6⅛"
Won't take up unnecessary space on your laboratory or production bench
Includes all the advanced functions and programming features of the NE-1000 series
Built-in adjustable and programmable limit switches for infusion and withdrawal
Adjustable force limit reduces maximum force
Fully programmable; Designed for automation
Operates stand-alone or from a computer. Cables sold separately.
Infusion and withdrawal
Set a single pumping rate and/or dispensing volume
Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
Network, control, and monitor up to 100 pumps with one computer
Worldwide power supplies available
Unlimited lifetime technical support
Two year warranty

Part number: NE-8000

$3,985.80

Qty:

Attribute name	Attribute value
Specifications
Capacity :	1 x Syringe (up to 140 ml, 160 ml partially filled)
Syringe ID :	0.100 to 50.00 mm
Speed :	0.00998882 cm/hr to 30.033 cm/min
Pumping Rate :	1.733 µL/hr (1 ml syringe) to 340.6 mL/min (140 ml syringe)
Accuracy :	± 1%
Maximum Force :	200 lbs @ min speed, 100 lbs @ max speed
Weight :	8.1 lbs (3.67 kg)
Dimensions LxWxH :	11 ¼” x 6 ⅛” x 6 ⅜” (28.575 x 15.558 x 16.1925 cm)
