New Era NE-500 Series OEM Programmable Single Syringe Pumps - NE-500
Standard
No
1 x Syringe (up to 60 ml)
0.100 to 50.00 mm
0.004204478 cm/hr to 5.100464828 cm/min
0.727 µL/hr (1 ml syringe) to 2120 mL/hr (60 ml syringe)
45 lbs @ min speed, 18 lbs @ max speed
8¾" x 5¾" x 4½" (22.86 x 14.605 x 11.43 cm)
NE-500

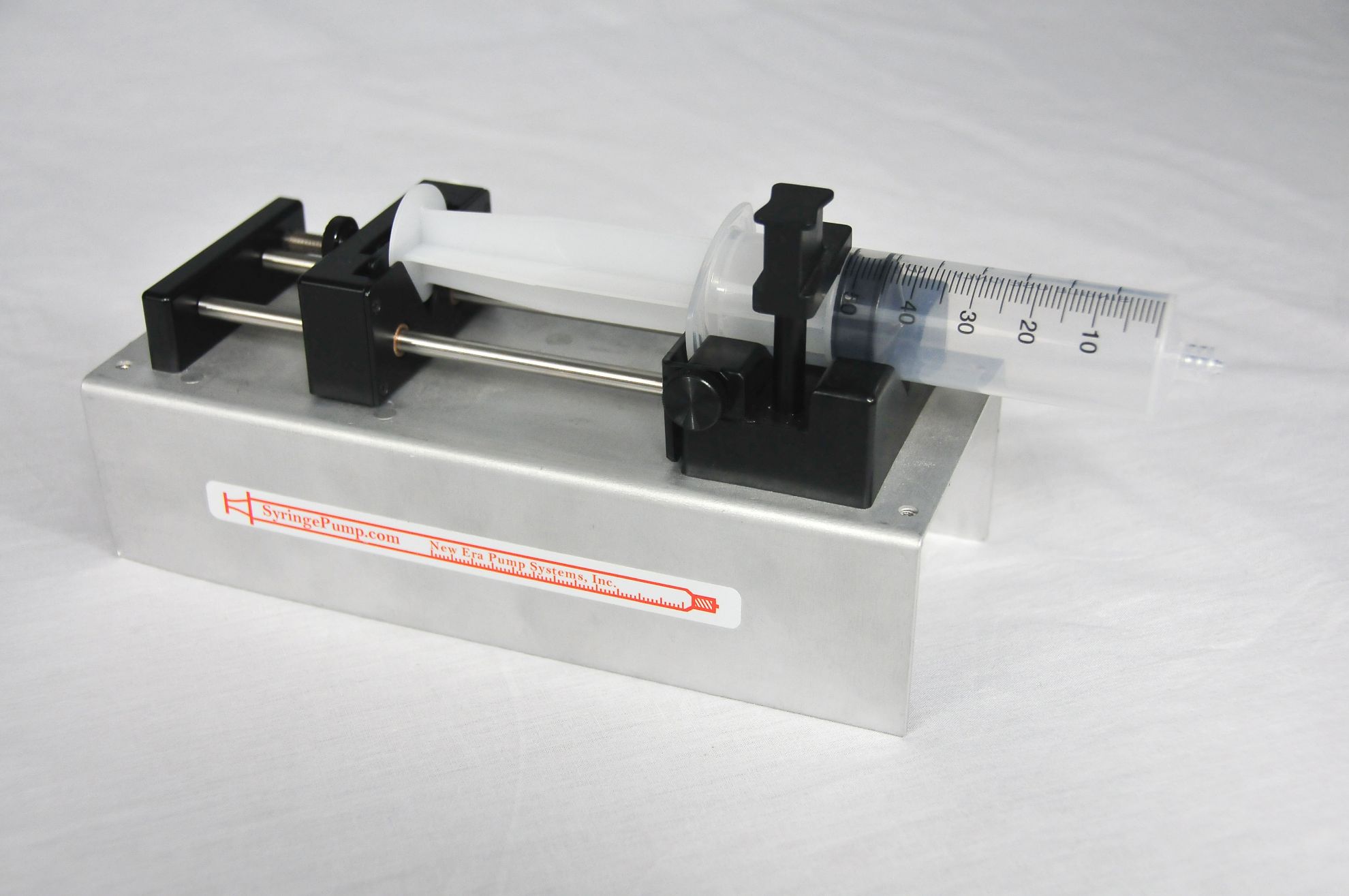

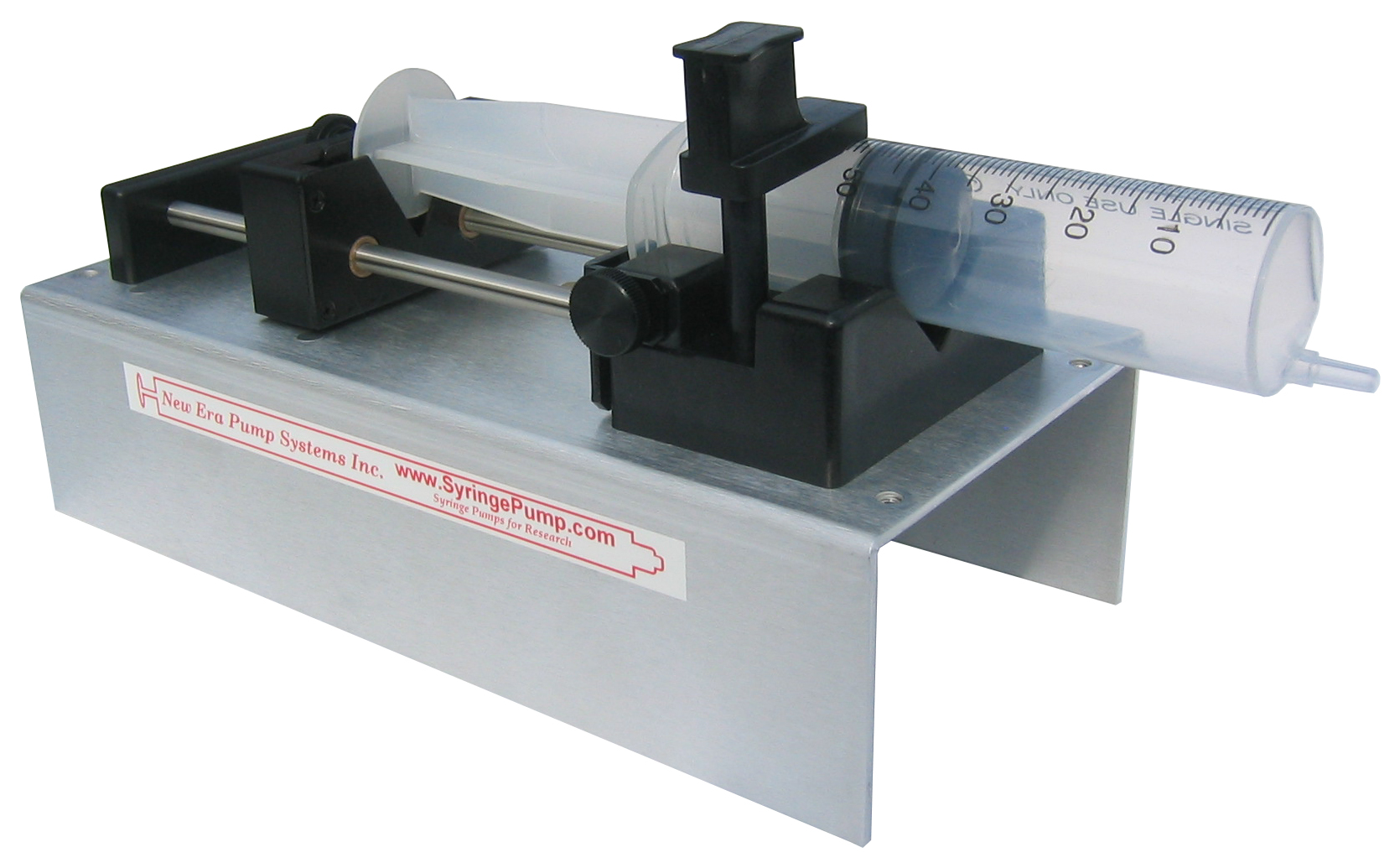

The New Era NE-500 Series OEM Programmable Single Syringe Pumps are available in High Pressure, Stall Detection and Long Chassis options.
- Computer controllable: networkable up to 100 pumps
- Stand-alone operation: pre-program the pump with a dispensing program, then operate the pump from an attached Foot Switch, button, or I/O controller
- One-click program upload from "Pumping Program Generator" spreadsheet
- Add the OEM Starter Kit to run as a fully functional, stand-alone pump
- Does not have a built-in user interface
- Chassis mountable: 9 1/2"L x 4"W x 4 1/8"H (24.13 x 10.16 x 10.5 cm)
- If chassis does not fit in your system, we make custom designed OEM syringe pumps to accommodate your specific needs
- Operates from a 12V DC power source
- Includes all the advanced functions and programming features of the NE-1000 Series
- Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately
- Does not come with a power supply, please order OEM-USB-START
CAD$ 796 95
