Lab Armor® Peltier Bead Baths - 75409-714

Lab Armor revolutionizes the scientific bath industry with the Peltier Bead Bath, delivering exceptional temperature uniformity!

Utilizing Peltier Thermoelectric Cooler-Heater (TEC-H) technology, the Peltier Bead Bath is an all-in-one unit that efficiently controls the temperature in chilled and heated applications. The air jacketed design is exclusive to the Lab Armor Peltier Bead Bath, and it is the only bead bath on the market with both cooling and heating capabilities.

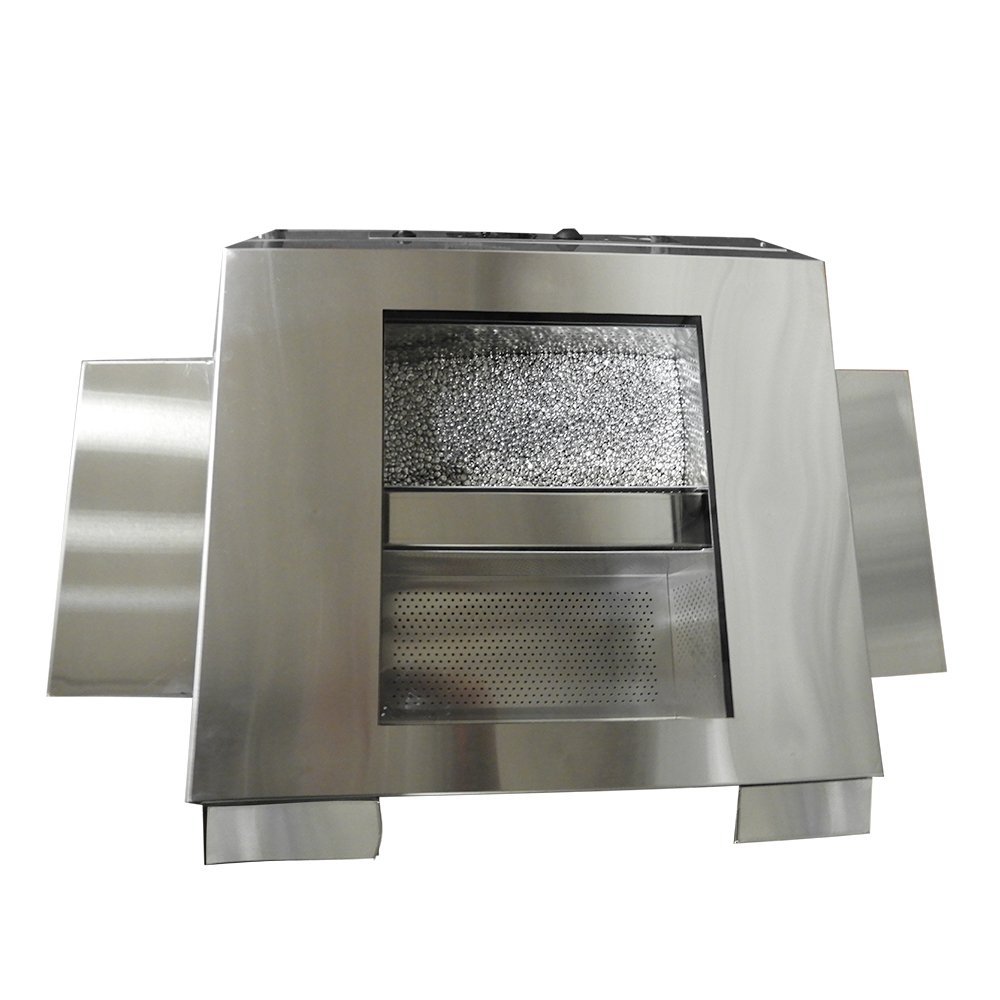

  • Removable 7L aluminum basket (1 or 2)

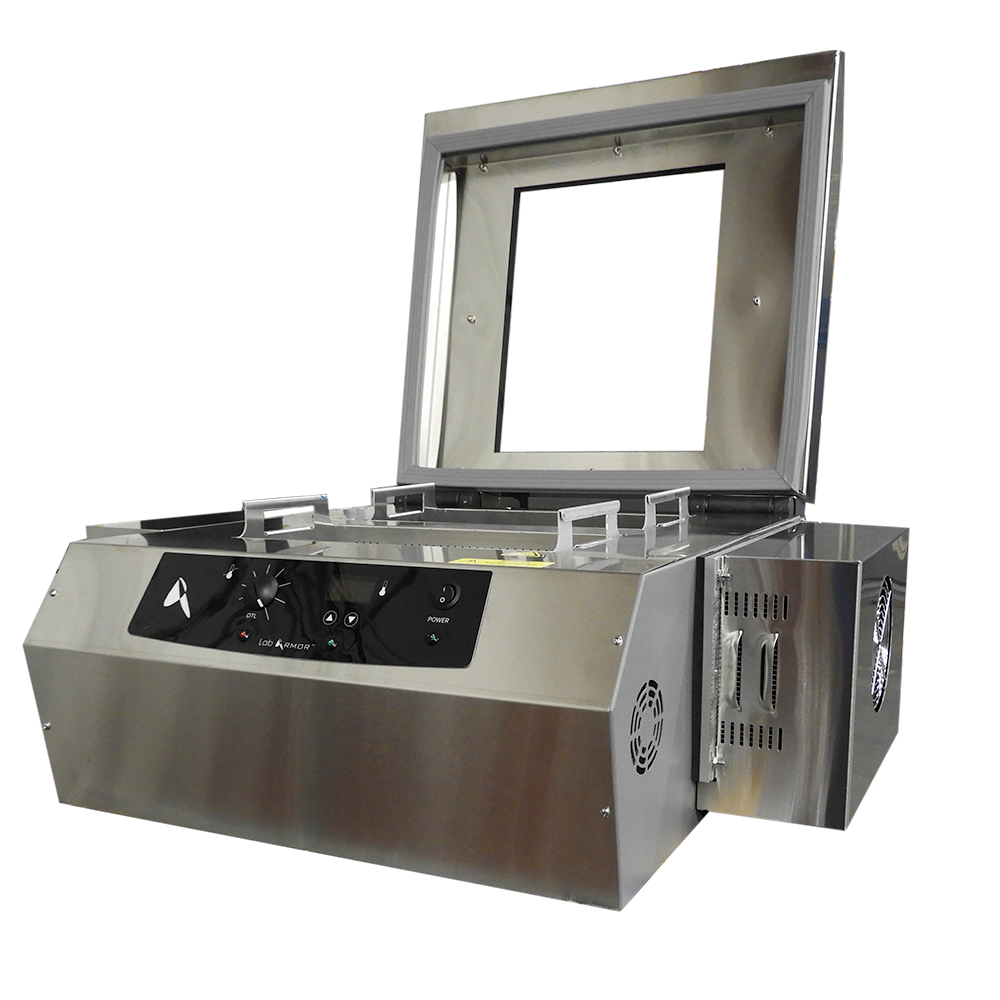

  • Hinged sealing lid
  • Temperature range of 2°C to 70°C
  • Acrylic viewport
  • Peltier TEC-H device

The Lab Armor Peltier Bath securely holds lab vessels of various sizes in place. Samples may be conveniently transported using the removable Lab Armor Peltier Bead Baskets.

The Bead Bath helps prevent the risk of sample contamination by removing water from many laboratory processes. These design features allow the Peltier Bead Bath to perform the role of multiple appliances, reducing benchtop space requirements.

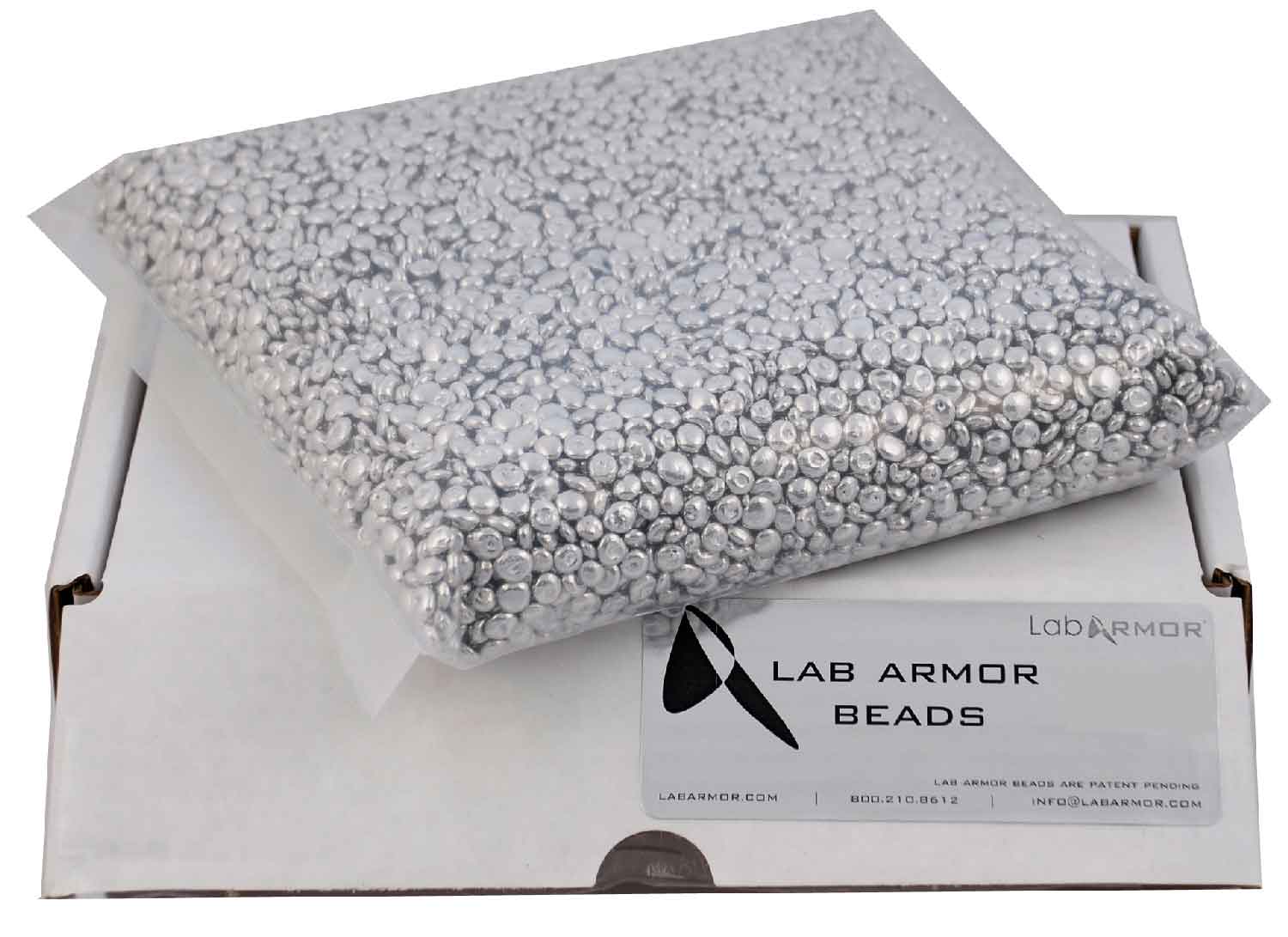

Unique Design - Lab Armor Bead Baths were specifically designed to work with Lab Armor Beads to optimize their performance.

​Uniform Temperatures - Using TEC-H thermoelectric technology and Lab Armor beads, you can heat or cool your samples and media, saving bench space while processing materials with exceptional temperature uniformity. With Bead Bath designed expressly for beads, temperatures are consistent and uniform everywhere in the bath. Thermal uniformity is ±0.5 at 37ºC.

​Always On - The bath always stays on, so you don’t have to plan around warmup times. You don’t need to worry about refilling or low water burnout because there is no water to evaporate.

​Stays Clean - Lab Armor reduces the risk of contamination. Contaminated samples and reagents result in distorted data and unpredictable outcomes.

Achieve reproducible results and have greater confidence in your work with
Lab Armor.

Part number: 75409-714
$9,167.16
Attribute nameAttribute value

Specifications

Volume :14.8L
Temperature Range :2 to 70°C
Temperature Resolution :0.1°C
Temperature Stability :0.1°C
Temperature Uniformity :±0.5°C @ 4°C; ±0.5°C @ 37°C; ±1.3°C @ 70°C
Internal Dimensions LxWxH :[12.5" × 6.1" × 6.0" (318 × 154 × 152 mm)] x2
External Dimensions LxWxH :30.4" × 24.2" × 12.2" (772 × 615 × 310 mm)
Weight :135.1 lbs (61.3 kg)
Power :100-240 VAC, 50/60 Hz, 550 W
Includes :14L Beads
