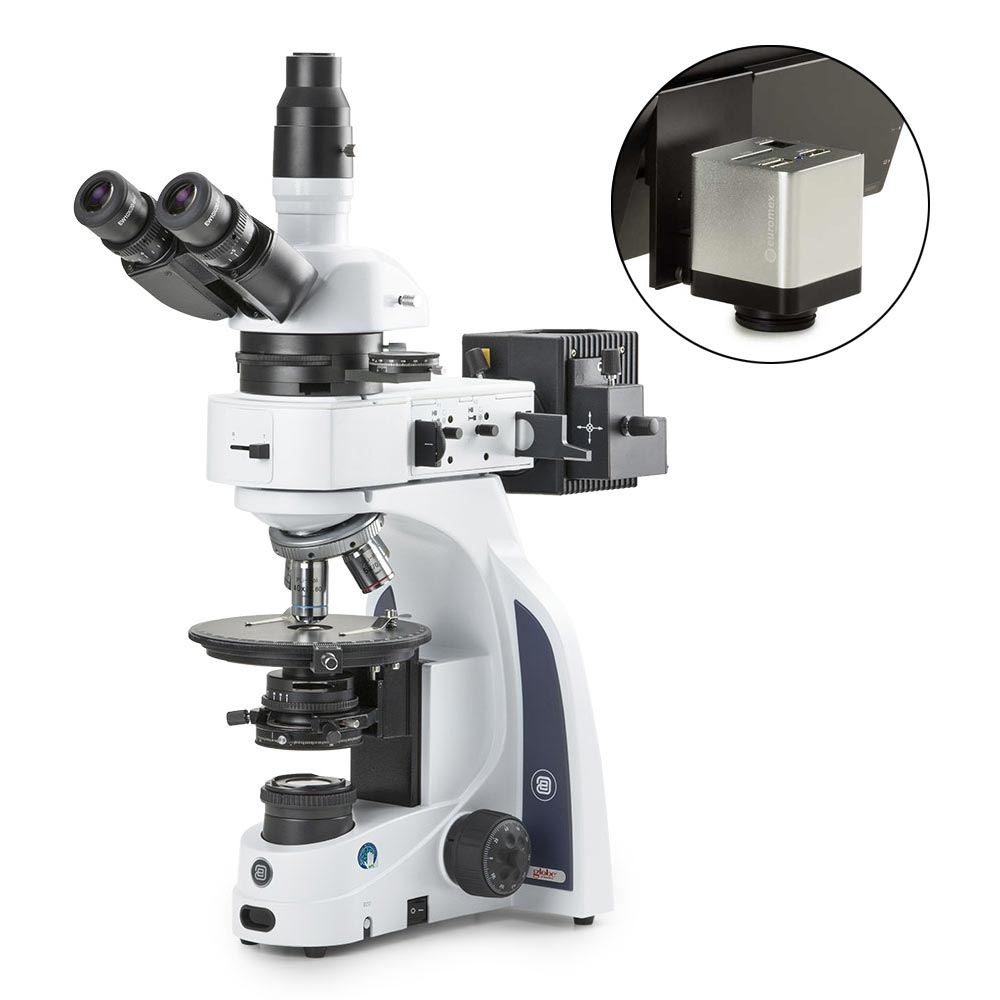

Euromex iScope® Compound Microscopes - EIS-1053-PLPOLRI-HDS

Euromex iScope® Compound Microscopes exceed today’s standard, as they provide more comfort and convenience for microscopists with ergonomic features such as height adjustable eye tubes and a large rackless stage with a double slide holder.

The modern design and compact size of the iScope® microscopes allows more working space, safer operation, and enables easy storage.

  • Binocular and Trinocular 30º Siedentopf, 360º rotating, Ø 30mm eyepiece tube, 48-76mm interpupillary, +/-5mm diopter head
  • Quintuple reversed nosepiece
  • E-plan, plan and plan phase infinity corrected IOS objectives
  • 156 x 138mm stage or 187/230 x 140mm rackless stage
  • Intensity adjustable 3W NeoLED™ Köhler illumination
  • iCare sensor for energy saving
  • Provided with APL (Antimicrobial Protection Layer)
  • Cable Storage System
  • CE certified
  • 10-Year warranty

Packed with features including quintuple objective turret design, diascopic intensity adjustable 3W NeoLED™ illumination, Abbe NA 1.25 condenser for brightfield, and cable storage management system, the iScope® series is an ideal solution to support demanding applications for fundamental analysis and research.

Additionally, configurations for phase contrast, cardioid mirror darkfield, basic polarization, and several epi-illumination sources for fluorescence applications can be used. iScope® models with multi-heads are also available for teaching purposes.

Part number: EIS-1053-PLPOLRI-HDS
$8,845.32
Attribute nameAttribute value

Specifications

Head :Trinocular
Eyepiece :EWF10x/22mm, EWF10x/22mm with crosshairs and micrometer reticle
Objective :Plan PLPOLRi IOS 5x/0.12, 20x/0.40, S50x/0.75 objectives
Condenser :Abbe N.A. 1.25 condenser with iris diaphragm and 360° - swing out - rotatable polarizer
Illumination :50W 12VDC halogen epi-illumination and external 100-240VAC power supply
Camera :HD Mini Camera w/13" HD Screen
