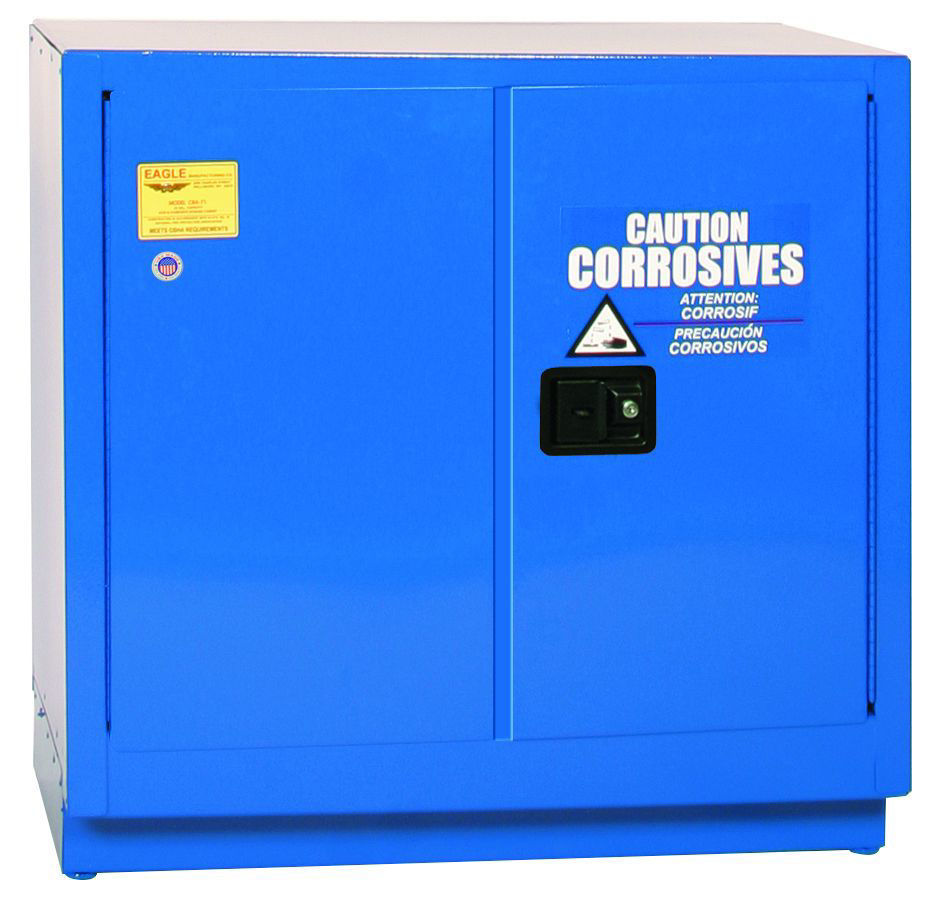

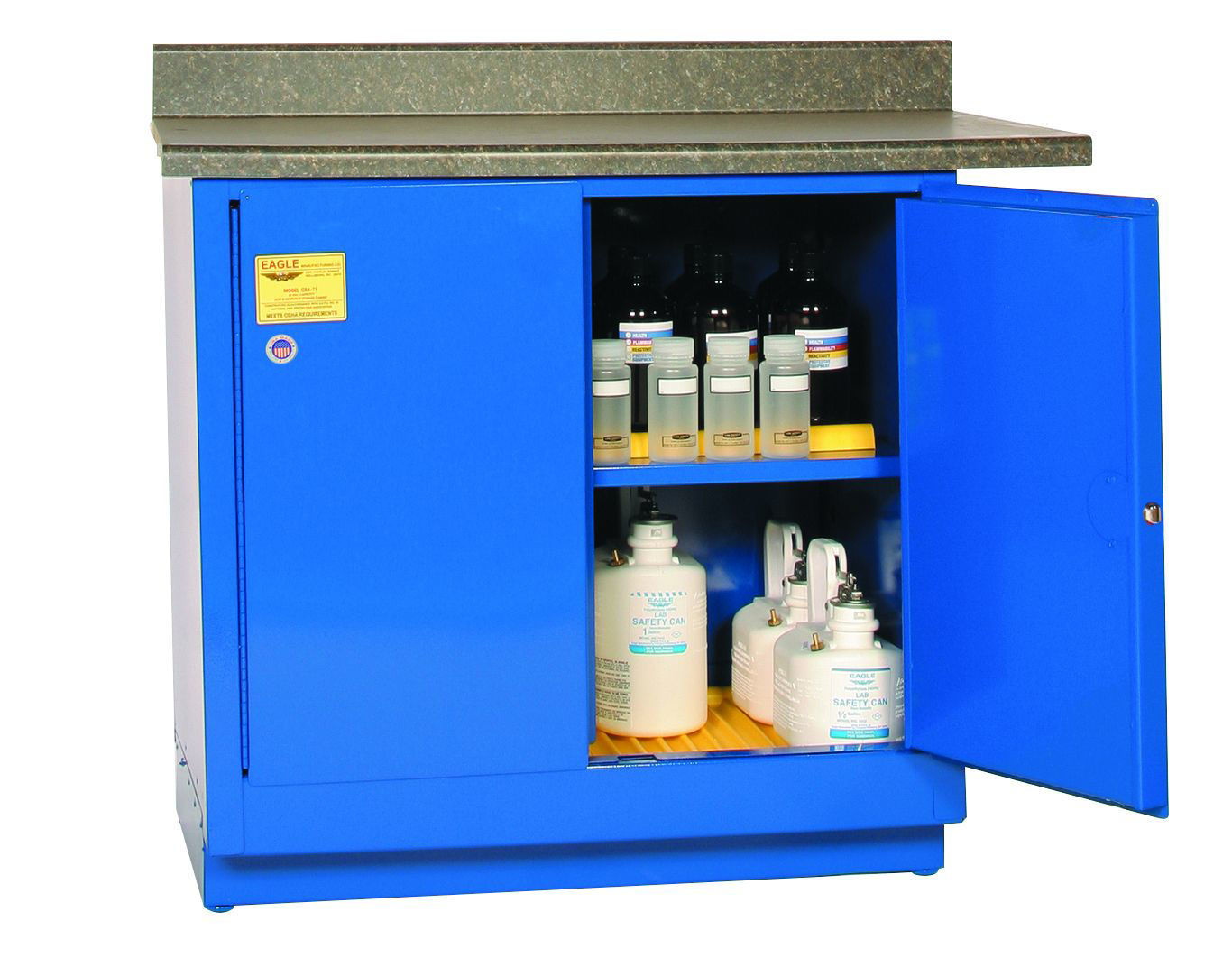

Eagle Manufacturing Acid Corrosive Safety Cabinets - CRA71X

Eagle Manufacturing Acid Corrosive Safety Cabinets are constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1½” (3.8 cm) air space between walls. Includes two vents, each have 2” (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a corrosion-resistant powder coat finish and includes trilingual warning label, plus grounding attachment, 3-point latch system, and 2” (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3” (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Includes poly shelf and sump trays to help contain small spills and provide extra corrosion protection. Not recommended for use with sulfuric, nitric or hydrochloric acids. Cabinets meet NFPA Code 30 and OSHA requirements.

  • Reinforced double wall construction with 1½” (3.8 cm) air space on sides, top, bottom, back and doors
  • Constructed of 18-gauge steel
  • Lead-free, high-gloss, baked-on blue powder finish
  • Continuous piano hinges
  • Ground connection
  • Four adjustable galvanized leveling legs
  • Trilingual warning labels
  • 2” (5.1 cm) raised leakproof sill
  • Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs (158.8 kg) Uniform Distributed Load (UDL)
  • Internal and external welded construction
  • Two 2” (5.1 cm) internal vents with fire baffle and cap
  • Flush mounted door handle with key lock
  • Three-point stainless steel bullet latching system
  • 3” (7.6 cm) centers for shelf brackets
  • Self-latching doors
  • OSHA and NFPA compliant
Part number: CRA71X
$2,425.00
Attribute nameAttribute value

Specifications

Capacity :22 Gallon
Number of Shelves :1
Door :Manual
Internal Dimensions LxWxH :31.75" x 18.75" x 26.5" / 80.6 x 47.6 x 67.3 cm
External Dimensions LxWxH :35" x 22" x 35" / 88.9 x 55.9 x 88.9 cm
